Multiple Ject

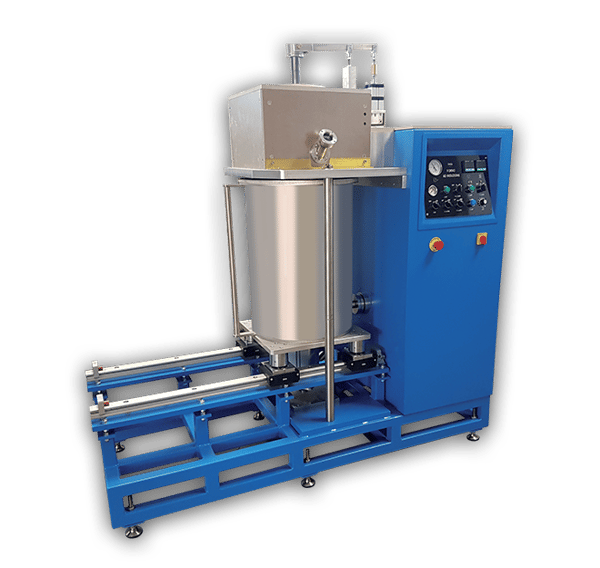

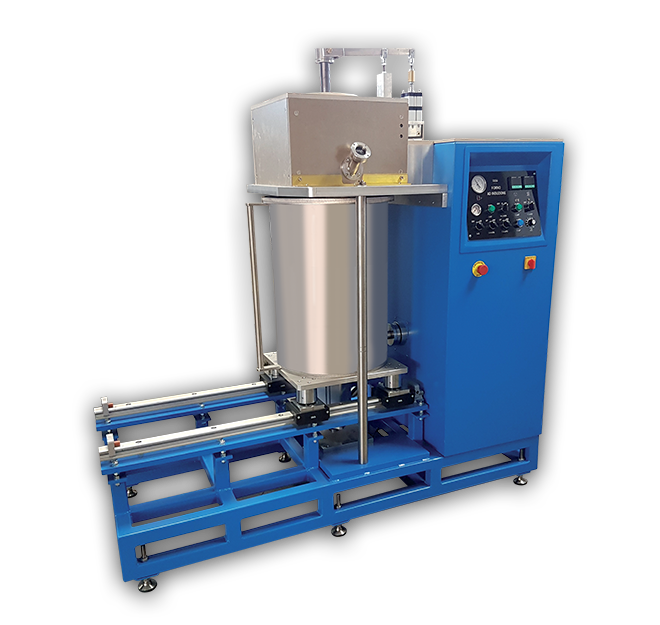

Large-scale micro casting machine

The Multiple Ject casting machine is a cutting-edge solution for large-scale micro-casting. Designed for operators who need to melt large quantities of the same metal and continuously pour it into different cylinders, This electronic induction casting machine optimizes the melting process thanks to specific technologies to facilitate operations.

With its large 3500 cc crucible, it allows the melting of large quantities of metal, while precise temperature control and the possibility to monitor the casting through a window ensure optimal and consistent melting results.

This die offers unparalleled operational flexibility, allowing the addition of inert gas to improve the quality of the finished product. In addition, the vacuum system created in the cylinder before casting minimizes the risks associated with the process, making Multiple Ject a safe choice for any company.

Request information

Variants

Casting capacity silver 925

Aluminium casting capacity

Maximum operating temperature

Weight

Measures in mm

Power

Multiple Ject

Casting capacity silver 925

30000 g

Aluminium casting capacity

8000 g

Maximum operating temperature

1200° C

Weight

580 kg

Measures in mm

720x1750x1800 h

Power

20 kW

Highlighted Benefits

Request information

Maximum efficiency
Reduced production times thanks to continuous casting in different cylinders.

Total control
The metal pouring can be monitored through a porthole.

High quality
Possibility to add inert gas during the process for higher quality.

Advanced safety
Using vacuum in the cylinder before casting eliminates the risks associated with the process.

High level performances

Crucible capacity
Up to 3500 cc of metal can be melted in a single session.

Temperature control
Linear power output and thermocouple positioned at the center of the metal mass.

Time and energy saving
Cylinder chamber slides on rail for easy positioning under the crucible.
